Fixed Knot Fence(field fence)

Fixed knot fence is a kind of woven wire mesh field fencing with stronger wire fabrics and can be installed quickly with fewer fence posts. This means that fixed knots brings reduced cost and less maintenance compared with other wire structures.

Materials: Galvanized or HDG hot dipped galvanized high tensile steel wire.
Application: Fixed knot fence are mainly used in the farm and pastures for animal fencing including deer fences and horse fences.

In regard to the surface treatment, this fence is available in heavy coated galvanized for a long service life. It is also available with a green plastic coating finish to harmonize with the surroundings.


Illu: Fixed Knot Fences for Horses

Besides, we also supply hinge joint woven wire fences, square deal knot fences for your choices of woven wires.



This procedure to establish the technical requirements related to Fixed knot fence, described purchasing offer. Specifications related wire mesh and type of knot required for the fence supplied described.

Fixed knot fence in 4 different specifications according to our market requirements. All common specifications are detailed below , please refrain from budgeting if the products are not as detailed in the present offer.

Material
The materials will be hard Galvanized wire classified as Class A. If it’s possible, please budget as well with Zn+Al recovery (Galvanization class A or C).



All Line Wire spacing are specified from TOP to BOTTOM.
The Zinc covering adhesion must meet the quality 1 stage defined in the EN 10244-2 standard (Testing method according to EN 10218-1).

Fixed knot fence locks vertical and horizontal wires together with a smooth, animal-friendly strong knot for an effective, affordable fence for all occasions.

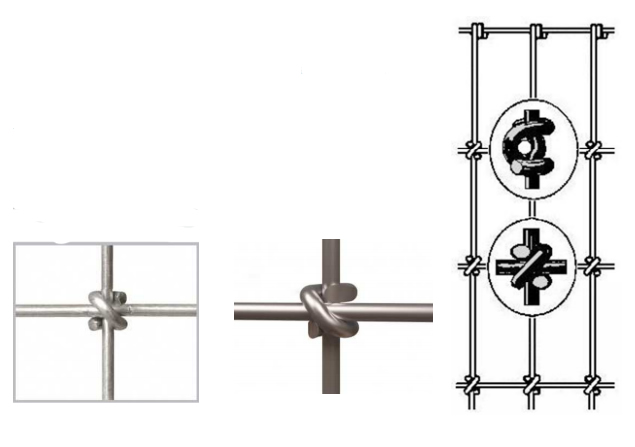

Please check the pictures of the knot requested below,





Dimensions and Surface

8 Line Wires LAMB FENCING

Diam Top and Bottom wires	2,5 mm
Diam Line Wires	2,5 mm
Diam Stay wires	2,5 mm
Knot wire	2,5 mm
Nominal height	800 mm
Line Wire spacing	152 / 127x4/ 76x2 mm
Stay wire spacing	220 mm



12 Line Wires ‘’HORSE FENCING’’

Diam Top and Bottom wires	2,5 mm
Diam Line Wires	2,5 mm
Diam Stay wires	2,5 mm
Knot wire	2,5 mm
Nominal height	1070 mm
Line Wire spacing	102x9 mm
Stay wire spacing	75 mm



13 Line Wires ‘’DEER FENCING’’

Diam Top and Bottom wires	2,0 mm
Diam Line Wires	2,0mm
Diam Stay wires	2,0 mm
Knot wire	2,0 mm
Nominal height	1900 mm
Line Wire spacing	178x5 /152x5/127x2 mm
Stay wire spacing	220 mm
